Solar Aerator
Features
- Solar Aerator are aeration systems powered by PV solar energy, used for fish ponds and lakes. The pond aeration system effectively promotes water flowing, improves water conditions and increases oxygen content in water, thereby improving aquaculture productivity.
- The solar pond aerator is economical and easy to install, helping aquaculture farmers reduce power consumption cost.
- Baile Pump offers a choice of three different Solar Aerator: impeller solar aerator, paddle wheel solar aerator and surge wave solar aerator.

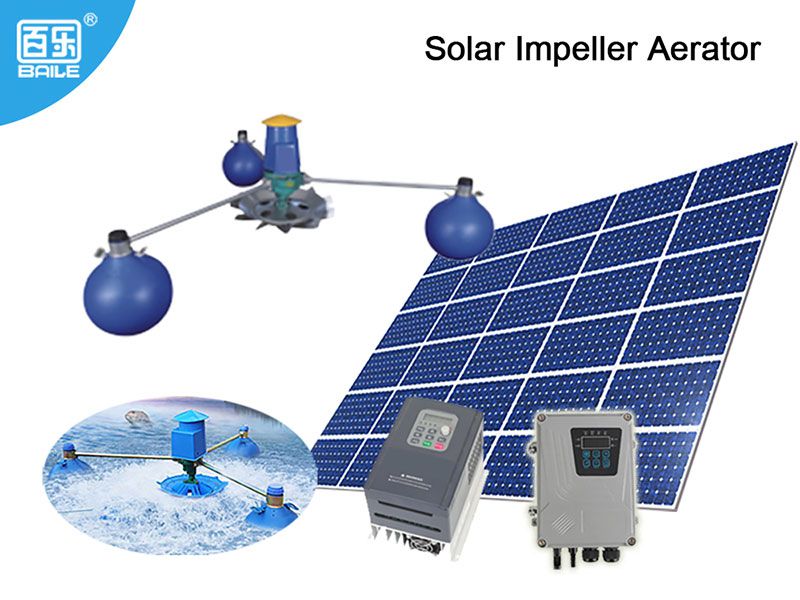

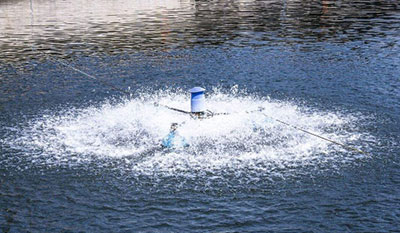

Impeller Solar Aerator
Technical Data
- Model:
SYL-48/750 - Aerator
Voltage(v): DC48
Power(w):750 - Solar panel
Open circuit voltage(v): 30-96
Recommended power(w): 1000-1200 - Oxygen transfer rate(kg/h): ≥1.1
- Coverage(m³): 666-2000
- Model:
SYL-72/1100 - Aerator
Voltage(v): DC72
Power(w):1100 - Solar panel
Open circuit voltage(v): 50-150
Recommended power(w): 1500-1800 - Oxygen transfer rate(kg/h): ≥1.1
- Coverage(m³): 2000-2665
- Model:
SYL-96/1500 - Aerator
Voltage(v): DC96
Power(w):1500 - Solar panel
Open circuit voltage(v): 60-185
Recommended power(w): 2000-4000 - Oxygen transfer rate(kg/h): ≥1.1
- Coverage(m³): 2000-4000
- Model:
SYL-300/2200 - Aerator
Voltage(v): AC220/DC300
Power(w):2200 - Solar panel
Open circuit voltage(v): 210-450
Recommended power(w): 2500-3000 - Oxygen transfer rate(kg/h): ≥1.1
- Coverage(m³): 666-3330

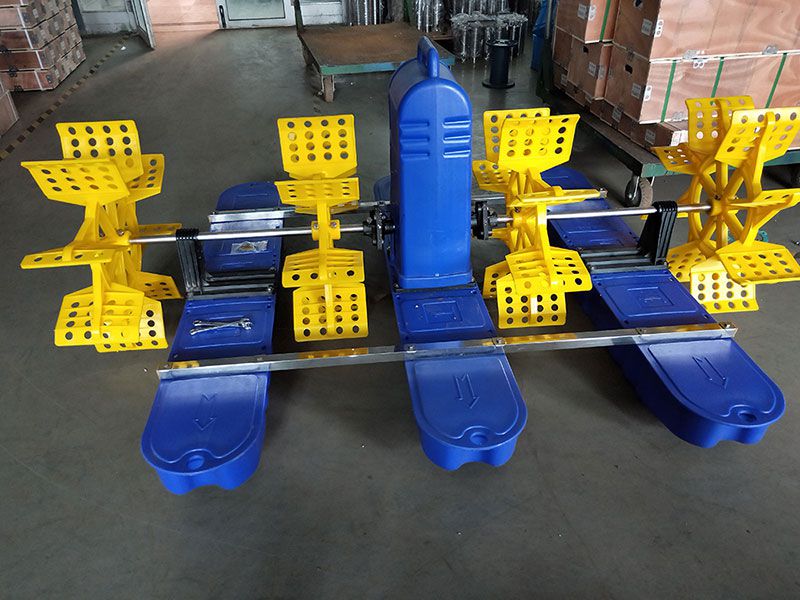

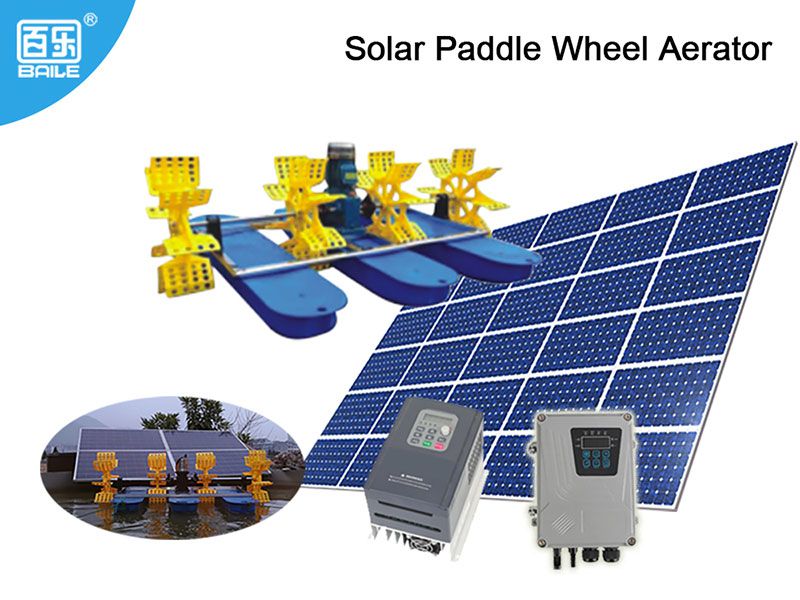

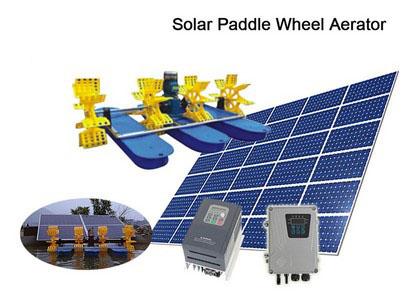

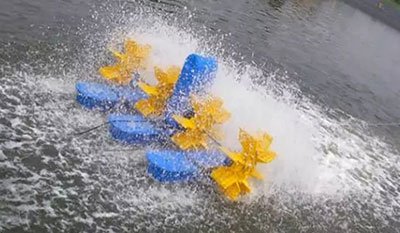

Paddle Wheel Solar Aerator
Technical Data
- Model:
SSC2-48/750 - Aerator
Voltage(v): DC48
Power(w):750 - Solar panel
Open circuit voltage(v): 30-96
Recommended power(w): 1000-1200 - Number of impellers: 2
- Oxygen transfer rate(kg/h): ≥1.1
- Coverage(m³): 666-3330
- Model:
SSC4-96/1500 - Aerator
Voltage(v): DC96
Power(w):1500 - Solar panel
Open circuit voltage(v): 60-185
Recommended power(w): 2000-4000 - Number of impellers: 2
- Oxygen transfer rate(kg/h): ≥1.9
- Coverage(m³): 2000-6660
- Model:
SSC6-300/2200 - Aerator
Voltage(v): ac220/dc300
Power(w):2200 - Solar panel
Open circuit voltage(v): 210-450
Recommended power(w): 2500-3000 - Number of impellers: 2
- Oxygen transfer rate(kg/h): ≥2.0
- Coverage(m³): 2665-8000

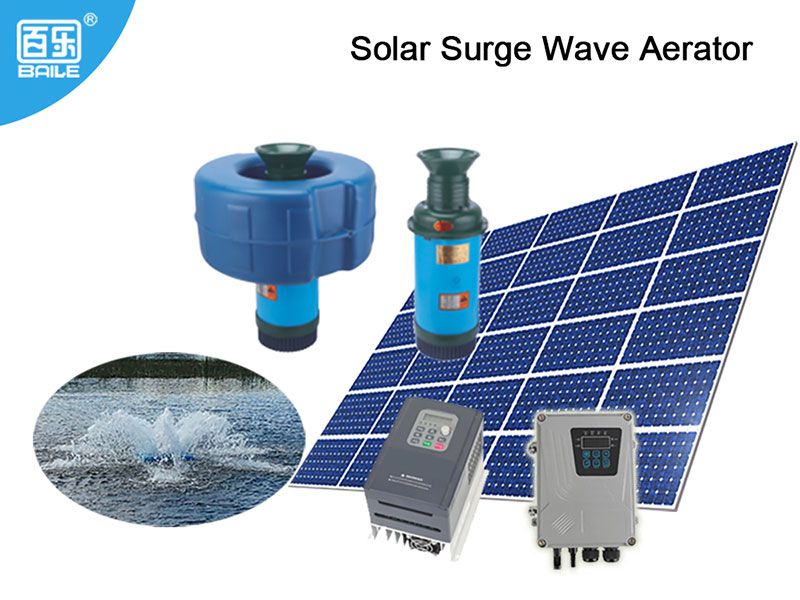

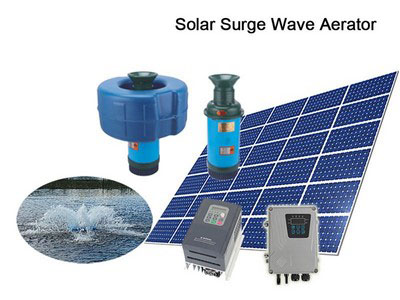

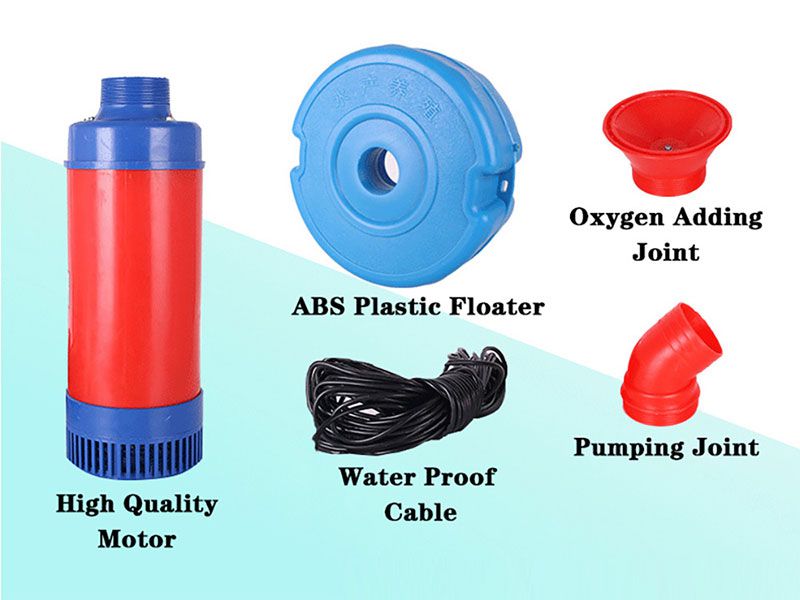

Surge Wave Solar Aerator
Technical Data
- Model:
SFB15/4.5-48/370 - Max. Flow (m³/h): 15
- Max. Head (m): 4.5
- Aerator
Voltage(v): DC48
Power(w):370 - Solar panel
Open circuit voltage(v): 30-96
Recommended power(w): 600 - Outlet (inch): 3
- Coverage(m³): 100-200
- Model:
SFB25/5-48/750 - Max. Flow (m³/h): 25
- Max. Head (m): 5
- Aerator
Voltage(v): DC48
- Power(w):750
- Solar panel
Open circuit voltage(v): 30-96
Recommended power(w): 1000-1200 - Outlet (inch): 3
- Coverage(m³): 333-666
- Model:
SFB30/7-72/1100 - Max. Flow (m³/h): 30
- Max. Head (m): 7
- Aerator
Voltage(v): DC72
Power(w):1100 - Solar panel
Open circuit voltage(v): 50-150
Recommended power(w): 1500-1800 - Outlet (inch): 3
- Coverage(m³): 500-1000
- Model:
SFB40/6-96/1500 - Max. Flow (m³/h): 40
- Max. Head (m): 6
- Aerator
Voltage(v): DC96
Power(w):1500 - Solar panel
Open circuit voltage(v): 60-185
Recommended power(w): 2000-2400 - Outlet (inch): 3
- Coverage(m³): 666-1332
- Model:
SFB55/5-300/2200 - Max. Flow (m³/h): 55
- Max. Head (m): 5
- Aerator
Voltage(v): AC220/DC300
Power(w):2200 - Solar panel
Open circuit voltage(v): 210-450
Recommended power(w): 2500-3000 - Outlet (inch): 4
- Coverage(m³): 1000-2000

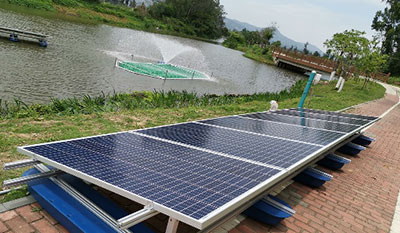

Application
