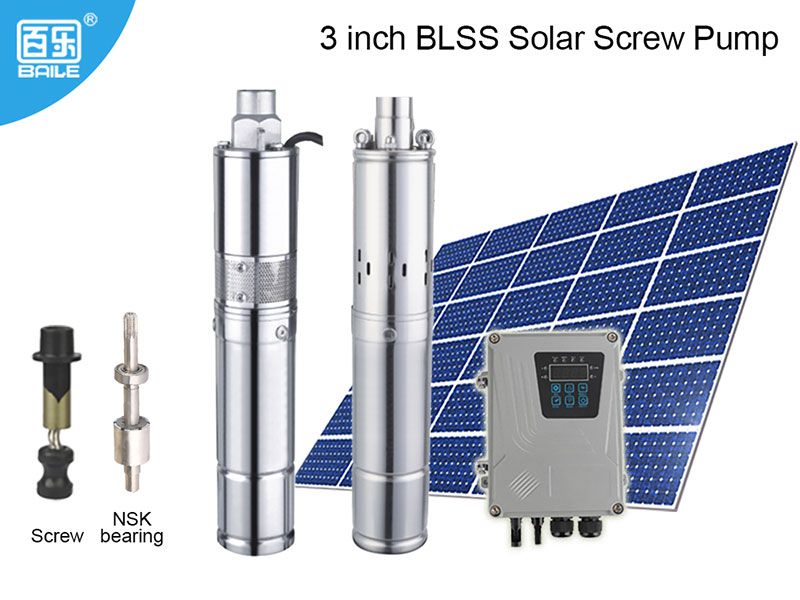

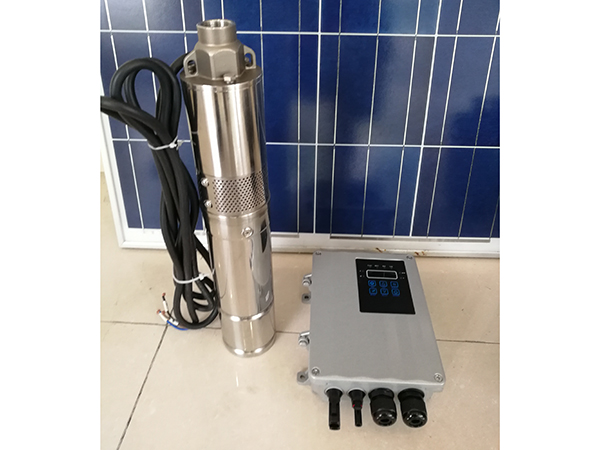

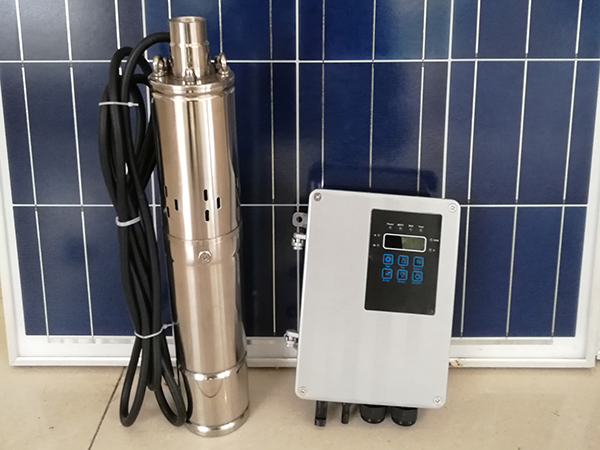

3" Submersible Screw Pump, Solar Well Pump, BLSS

3" Submersible Screw Pump, Solar Well Pump, BLSS
3" Submersible Screw Pump, Solar Well Pump, BLSS 3" Submersible Screw Pump, Solar Well Pump, BLSS 3" Submersible Screw Pump, Solar Well Pump, BLSS 3" Submersible Screw Pump, Solar Well Pump, BLSS
  • Max.flow range: 1 m³/h ~ 2.3m³/h
  • Max. head range: 30m~180m
  • Pump voltage: DC24V, DC48V, DC72V
  • Pump outer diameter: 3"
  • Pump outlet diameter: 0.75"
  • Pump Height: 418 mm
Inquiry

Features

  • Rugged and durable high-quality screw.

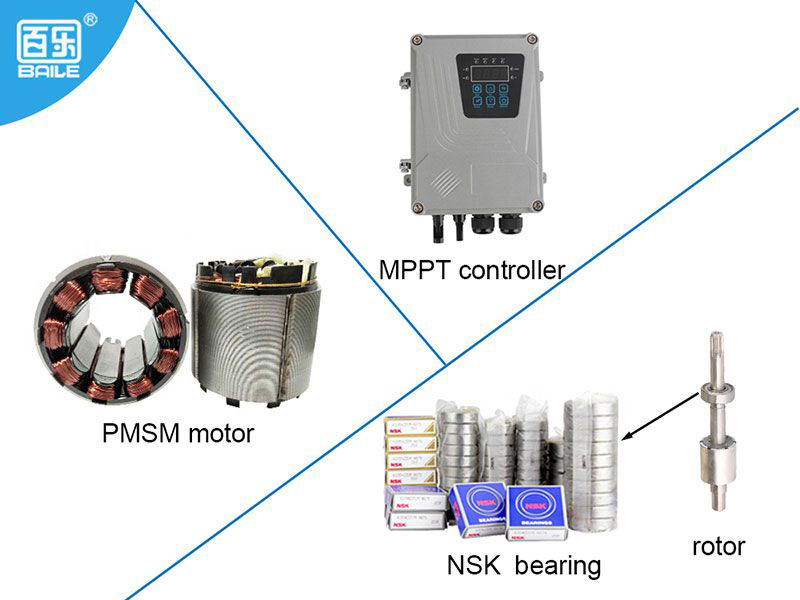

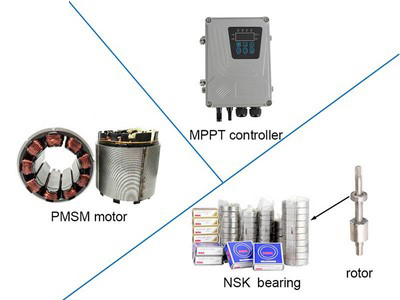

  • State of the art NSK bearing and stainless-steel rotor for reduced abrasion and wearing.
  • Stainless steel water pump body and outlet.
  • Precision mechanical seal for great leakproofness, wear resistance and long lifespan.
  • Permanent magnet DC synchronous brushless motor.
  • Equipped with smart solar charge controller, incorporating MPPT technology, low-voltage protection, reverse polarity protection and dry running protection.

Technical Data

  • Model: 3BLSS1.0/30-D24/80 (c)
  • Max. Flow (m³/h): 1
  • Max. Head (m): 30
  • Pump
    Voltage (V): DC24
    Power (W): 80
  • Solar Panel
    Open Circuit Voltage (V): 20-50
    Recommended Power (W): 250

  • Model: 3BLSS1.3/50-D24/140 (c)
  • Max. Flow (m³/h): 1.3
  • Max. Head (m): 50
  • Pump
    Voltage (V): DC24
    Power (W): 140
  • Solar Panel
    Open Circuit Voltage (V): 20-50
    Recommended Power (W): 300

  • Model: 3BLSS1.8/80-D24/21(c)
  • Max. Flow (m³/h): 1.8
  • Max. Head (m): 80
  • Pump
    Voltage (V): DC24
    Power (W): 210
  • Solar Panel
    Open Circuit Voltage (V): 20-50
    Recommended Power (W): 340

  • Model: 3BLSS1.8/100-D24/270(c)
  • Max. Flow (m³/h): 1.8
  • Max. Head (m): 100
  • Pump
    Voltage (V): DC24
    Power (W): 270
  • Solar Panel
    Open Circuit Voltage (V): 20-50
    Recommended Power (W): 500

  • Model: 3BLSS1.8/120-D48/500(c)
  • Max. Flow (m³/h): 1.8
  • Max. Head (m): 120
  • Pump
    Voltage (V): DC48
    Power (W): 500
  • Solar Panel
    Open Circuit Voltage (V): 30-96
    Recommended Power (W): 800

  • Model: 3BLSS2.3/140-D48/750(c)
  • Max. Flow (m³/h): 2.3
  • Max. Head (m): 140
  • Pump
    Voltage (V): DC48
    Power (W): 750
  • Solar Panel
    Open Circuit Voltage (V): 30-96
    Recommended Power (W): 1200

  • Model: 3BLSS2.3/160-D72/1100(c)
  • Max. Flow (m³/h): 2.3
  • Max. Head (m): 160
  • Pump
    Voltage (V): DC72
    Power (W): 1100
  • Solar Panel
    Open Circuit Voltage (V): 50-150
    Recommended Power (W): 1500

  • Model: 3BLSS2.3/180-D72/1200(c)
  • Max. Flow (m³/h): 2.3
  • Max. Head (m): 180
  • Pump
    Voltage (V): DC72
    Power (W): 1200
  • Solar Panel
    Open Circuit Voltage (V): 50-150
    Recommended Power (W): 1800
Inquiry
