Solar Pool Pump

Solar Pool Pump
Solar Pool Pump Solar Pool Pump Solar Pool Pump
  • Max. flow range: 6 m³/h ~ 31 m³/h
  • Max. head range: 9m~19m
  • Pump voltage: DC24V, DC48V, DC72V
  • Inlet/outlet:1.5"/1.5", 2"/2", 2.5"/2.5"
Inquiry

Features

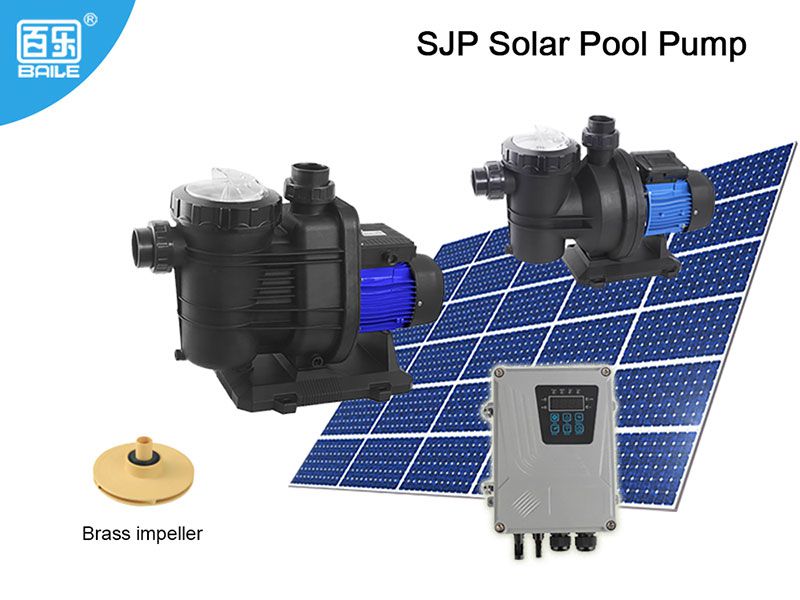

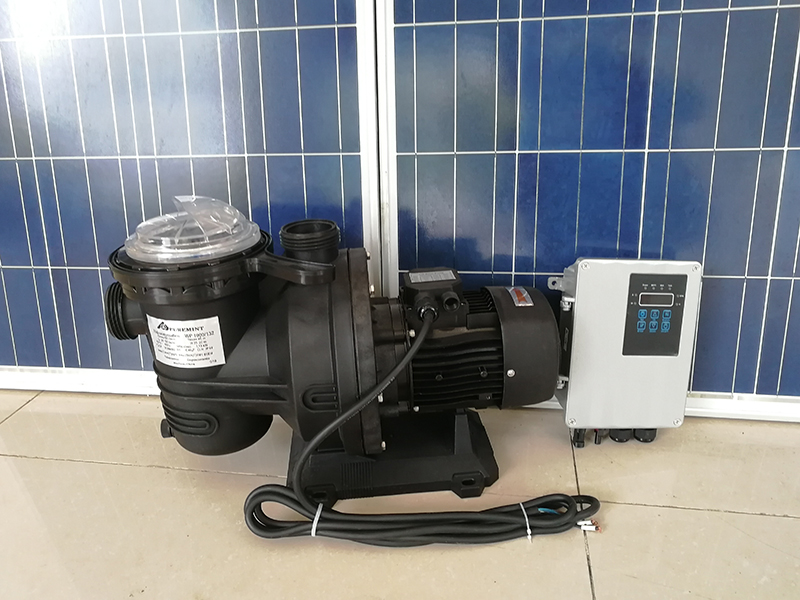

  • Solar Pool Pump SJP series are designed for water filtration and circulation in domestic or commercial pools. This solar powered water pump can also be used for domestic water supply and agricultural irrigation.
  • The solar powered pool pump features simple design, high working efficiency, high effectiveness and high reliability.
  • Voltage: DC 24V, DC 48V, DC 72V.
  • Power: 200W-1200W.
  • Max. flow: 6000L/H-31000L/H.
  • Max. head: 9m-19m.

Product Configuration

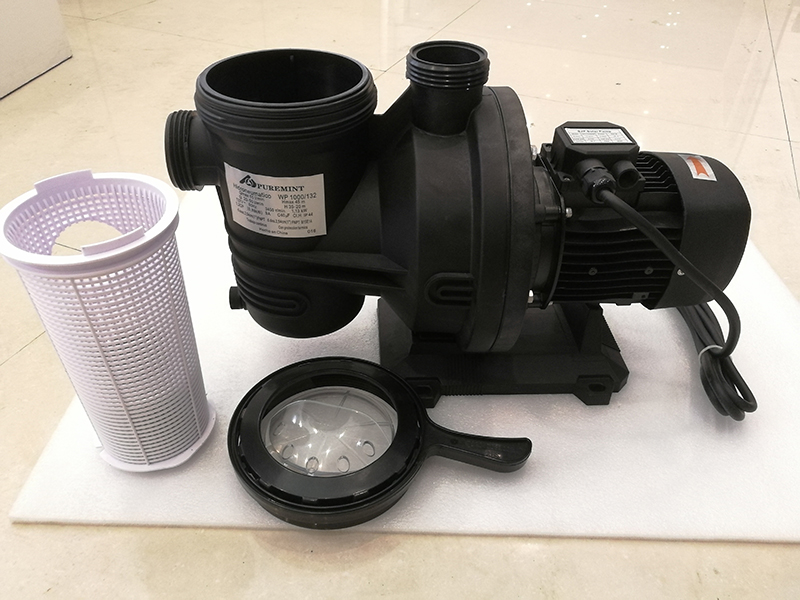

  • Pump body and outlet: plastic.
  • Impeller: plastic.
  • Motor casing: die-casting aluminum.
  • Bearing: NSK stainless steel bearing.
  • Motor: permanent magnet synchronous brushless motor.
  • Controller: MPPT function, reverse polarity alarm protection, wide voltage input range.

Applications

Domestic water needs Domestic water needs
Agricultural irrigation Agricultural irrigation

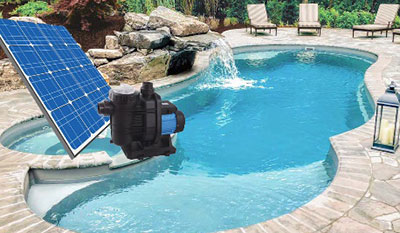

Pool circulation and filtration Pool circulation and filtration

Technical Data

  • Model: SJP6/9-D24/200
  • Max. Flow (m³/h): 6
  • Max. Head (m): 9
  • Pump
    Voltage (V): 24
    Power (W): 200
  • Solar Panel
    Open Circuit Voltage (V): 20-50
  • Recommended Power (W): 280-380
  • Inlet/outlet (inch): 1.5/1.5

  • Model: SJP17/15-D48/500
  • Max. Flow (m³/h): 17
  • Max. Head (m): 15
  • Pump
    Voltage (V): 48
    Power (W): 500
  • Solar Panel
    Open Circuit Voltage (V): 30-96
    Recommended Power (W): 650-800
  • Inlet/outlet (inch): 2/2

  • Model: SJP21/19-D72/900
  • Max. Flow (m³/h): 21
  • Max. Head (m): 19
  • Pump
    Voltage (V): 72
    Power (W): 900
  • Solar Panel
    Open Circuit Voltage (V): 50-150
    Recommended Power (W): 1200-1400
  • Inlet/outlet (inch): 2/2

  • Model: SJP31/19-D72/1200
  • Max. Flow (m³/h): 31
  • Max. Head (m): 19
  • Pump
    Voltage (V): 72
    Power (W): 1200
  • Solar Panel
    Open Circuit Voltage (V): 50-150
    Recommended Power (W): 1560-1800
  • Inlet/outlet (inch): 2.5/2.5
Inquiry
Baile Pump is a leading manufacturer of solar water pump systems. We offer complete solar powered water pumping solutions and related products, including solar water pumps, solar charge controllers, Solar Aerator, Solar Panel and more. Our clean and cost-friendly solar water pumping systems are served to customers around the world in residential, commercial, industrial, agricultural and municipal applications.
In addition to stock solar water pumping products, we can also provide customized solar water pumps to fit customer’s specific requirements. We offer high-quality technical support and after-sales service to solve your problems when using our water pumps.
Each solar water pump is delivered with optimum quality by virtue of our strong manufacturing capabilities, high-quality pump parts and strict quality control system. We never stop improving the performance of solar water pumps as well as reducing cost to help our customers improve competitiveness.
