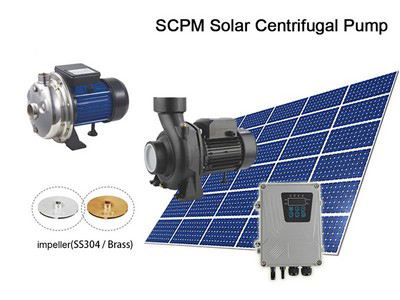

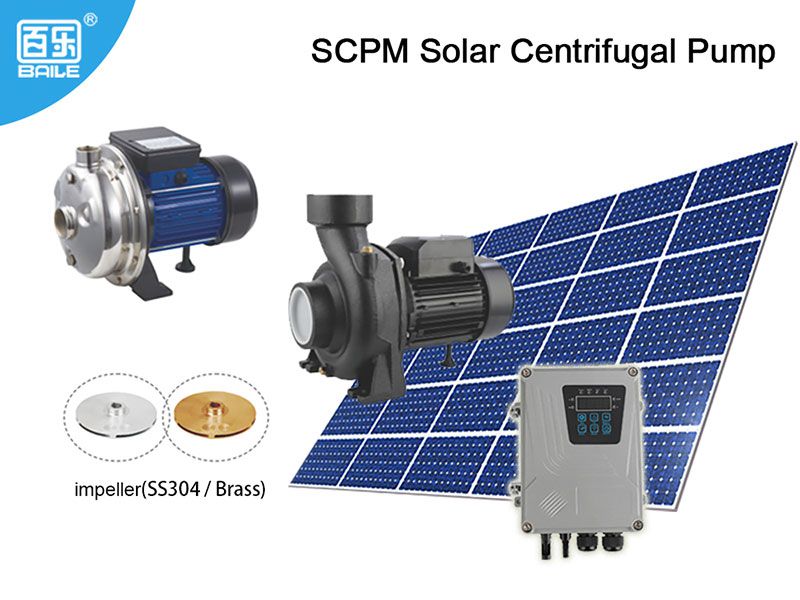

Centrifugal Pump, Solar Water Pumping
- Max. flow range: 4.8 m³/h ~ 60 m³/h
- Max. head range: 15m~40m
- Pump voltage: DC48V, DC72V, DC96V
- Inlet/outlet：1"/1", 1.5"/1.5", 2"/2", 3"/3", 4"/4"
Features
- The centrifugal solar pumps are suitable for domestic water needs, farm irrigation, garden irrigation, air conditioner water cooling system, drinking water supply, water pipe pressure boost, etc.
- The centrifugal solar pumping system is designed with simple construction, high effectiveness and excellent reliability.
- Voltage: DC centrifugal pump: DC 48V-DC 96V;
AC/DC centrifugal pump: AC 220V, DC 330V. - Power: 220W-750W.
- Max. flow: 60000L/H.
- Max. head: 40m.
Product Configuration
- Pump body: stainless steel.
- Impeller: brass or stainless steel.
- Motor casing: die-casting aluminum.
- Bearing: NSK stainless steel bearing.
- Motor: permanent magnet synchronous brushless motor.
- Controller: MPPT function, reverse polarity alarm protection, wide voltage input range.
Technical Data
- Model:
SCPM6.6/40-D48/750P(SS) - Max. Flow (m³/h): 6.6
- Max. Head (m): 40
- Pump
Voltage (V): 48
Power (W): 750 - Solar Panel
Open Circuit Voltage (V): 30-96
Recommended Power (W): 1000-1250 - Inlet/outlet (inch): 1/1
- Model:
SCPM4.8/25-D48/370 - Max. Flow (m³/h): 4.8
- Max. Head (m): 25
- Pump
Voltage (V): 48
Power (W): 370 - Solar Panel
Open Circuit Voltage (V): 30-96
Recommended Power (W): 500-600 - Inlet/outlet (inch): 1/1
- Model:
SCPM6.6/38-D48/750 - Max. Flow (m³/h): 6.6
- Max. Head (m): 38
- Pump
Voltage (V): 48
Power (W): 750 - Solar Panel
Open Circuit Voltage (V): 30-96
Recommended Power (W): 1000-1200 - Inlet/outlet (inch): 1/1
- Model:
SCPM16/18-D48/750 - Max. Flow (m³/h): 16
- Max. Head (m): 18
- Pump
Voltage (V): 48
Power (W): 750 - Solar Panel
Open Circuit Voltage (V): 30-96
Recommended Power (W): 1000-1200 - Inlet/outlet (inch): 1.5/1.5
- Model:
SCPM27/15-D72/1100 - Max. Flow (m³/h): 27
- Max. Head (m): 15
- Pump
Voltage (V): 72
Power (W): 1100 - Solar Panel
Open Circuit Voltage (V): 50-150
Recommended Power (W): 1500-2000 - Inlet/outlet (inch): 2/2
- Model:
SCPM45/17-D96/1500 - Max. Flow (m³/h): 45
- Max. Head (m): 17
- Pump
Voltage (V): 96
Power (W): 1500 - Solar Panel
Open Circuit Voltage (V): 60-185
Recommended Power (W): 2000-2500 - Inlet/outlet (inch): 3/3
- Model:
SCPM60/18-D300/2200 - Max. Flow (m³/h): 60
- Max. Head (m): 18
- Pump
Voltage (V): AC220/DC300
Power (W): 2200 - Solar Panel
Open Circuit Voltage (V): 300-450
Recommended Power (W): 2500-3200 - Inlet/outlet (inch): 4/4
Applications

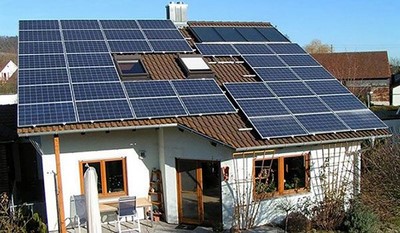

Domestic water needs

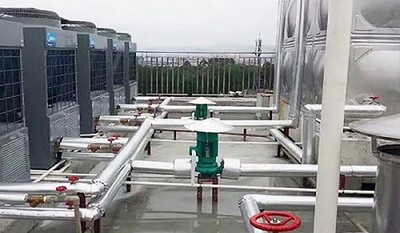

Air conditioner water cooling system

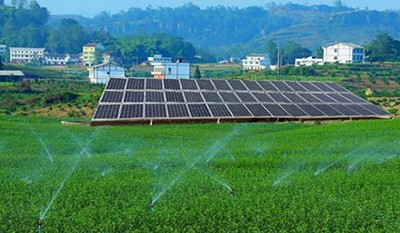

Agricultural irrigation
Drinking water supply
Inquiry

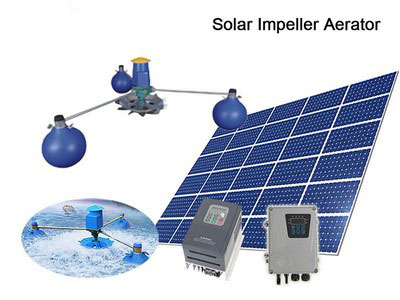

Baile Pump is a leading manufacturer of solar water pump systems. We offer complete solar powered water pumping solutions and related products, including solar water pumps, solar charge controllers, Solar Aerator, Solar Panel and more. Our clean and cost-friendly solar water pumping systems are served to customers around the world in residential, commercial, industrial, agricultural and municipal applications.
In addition to stock solar water pumping products, we can also provide customized solar water pumps to fit customer’s specific requirements. We offer high-quality technical support and after-sales service to solve your problems when using our water pumps.

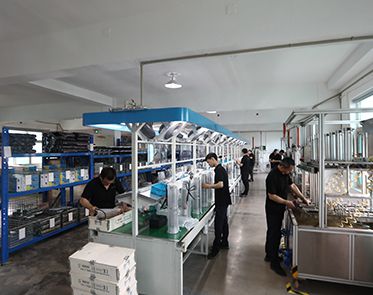

Each solar water pump is delivered with optimum quality by virtue of our strong manufacturing capabilities, high-quality pump parts and strict quality control system. We never stop improving the performance of solar water pumps as well as reducing cost to help our customers improve competitiveness.
