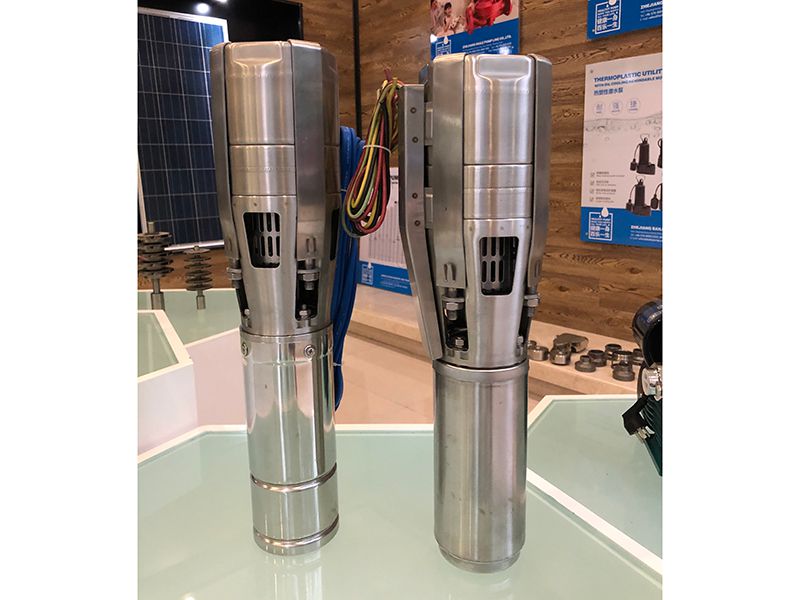

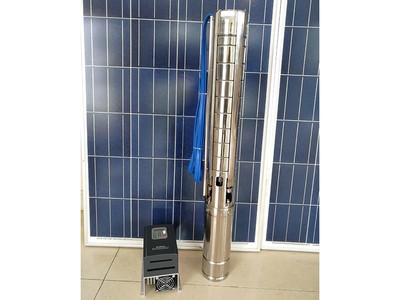

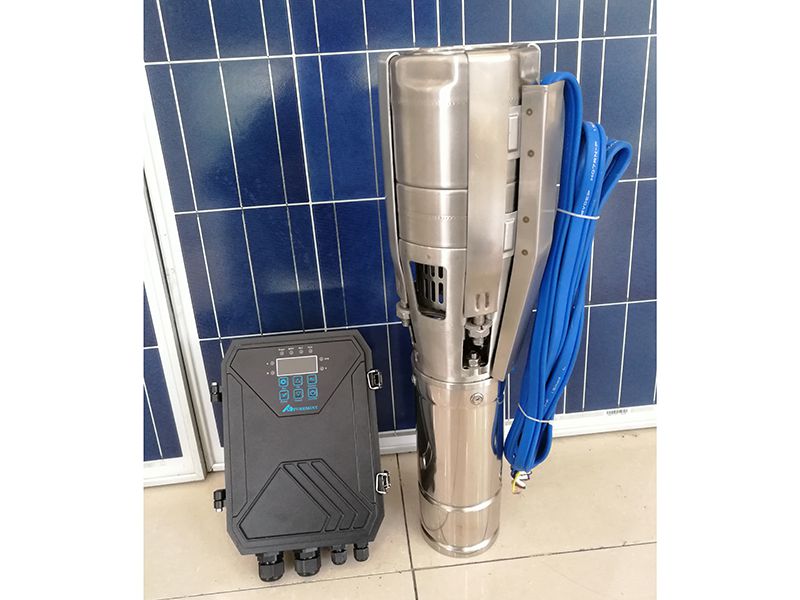

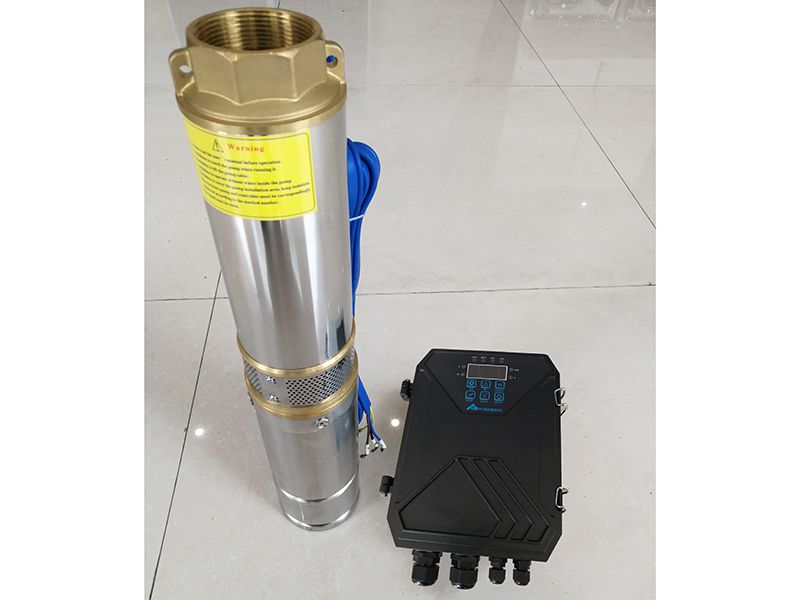

AC/DC Submersible Well Pump, Solar Water Pump

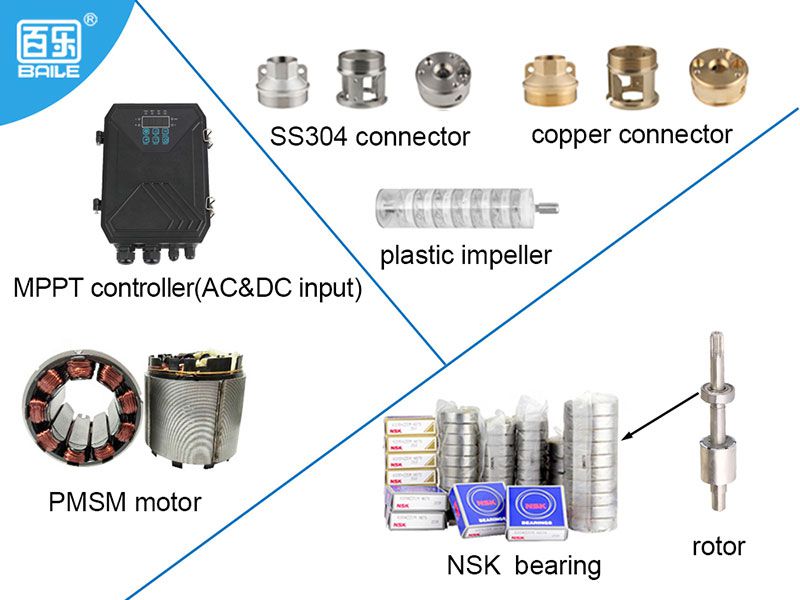

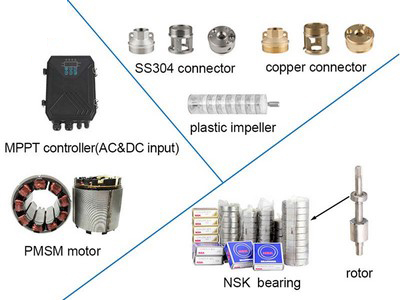

Features
- Able to be powered by AC or DC power in case of the solar power input shortage.

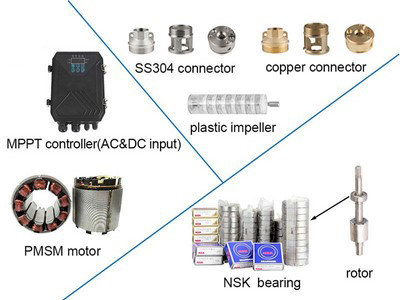

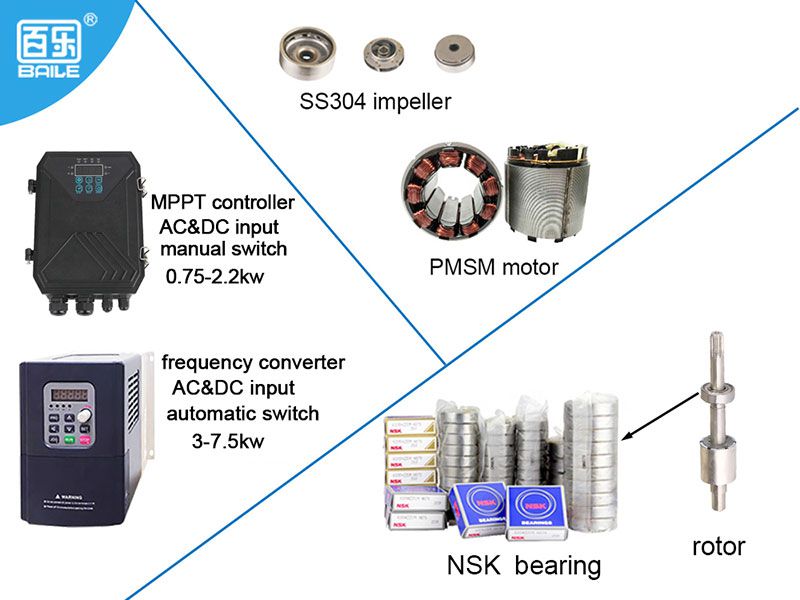

- NSK bearing and stainless-steel rotor for less abrasion and wearing.
- High-quality mechanical seal for great water leakproofness, wear resistance and long lifespan.

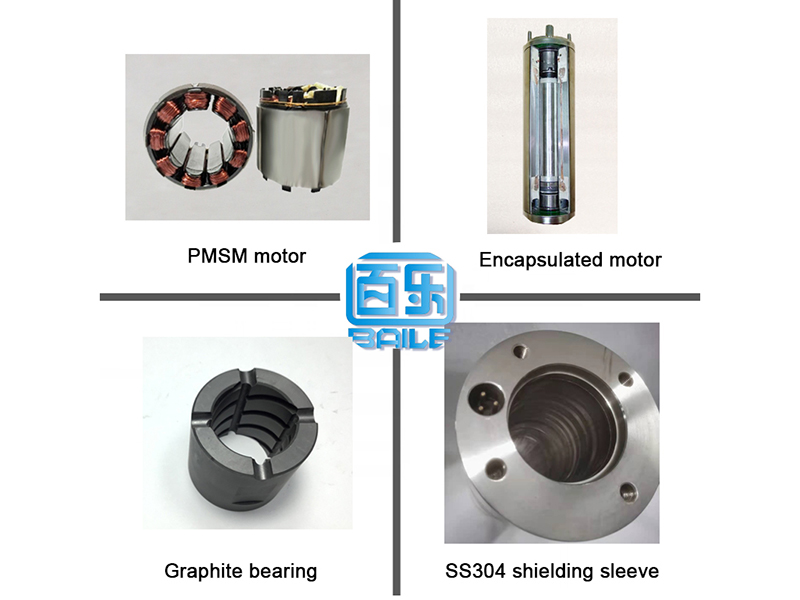

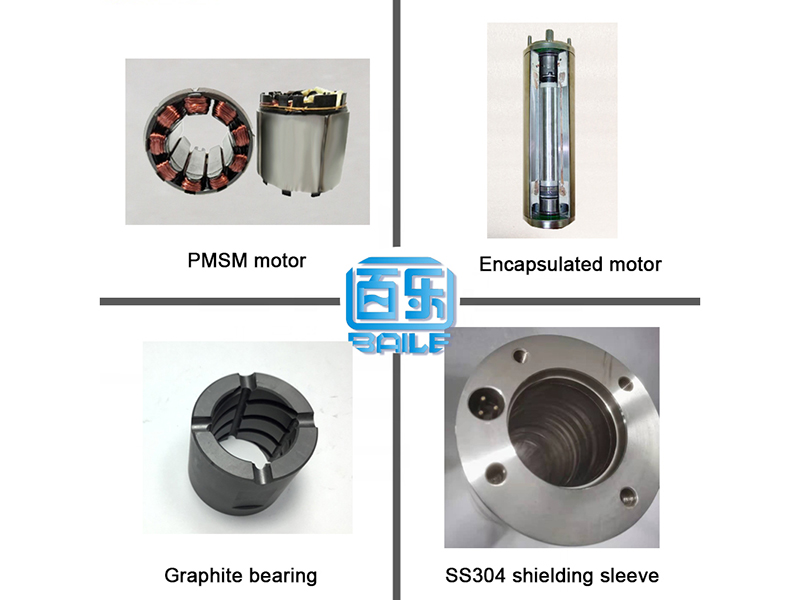

- Permanent magnet synchronous motor.
- Equipped with variable frequency solar charge controller, incorporating MPPT technology, low-voltage protection, reverse polarity protection and dry running protection.
- Stainless steel or plastic impeller.
- Stainless steel submersible pump body and stainless steel or brass outlet.
- Optional encapsulated water-cooled motor: low noise, long service life, hermetically sealing and leakproofness.
Applications
Domestic water supply

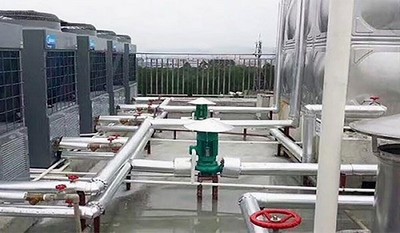

Air conditioner water cooling system

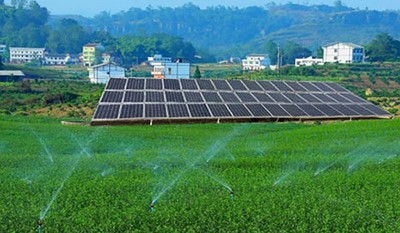

Agricultural irrigation
Drinking water supply

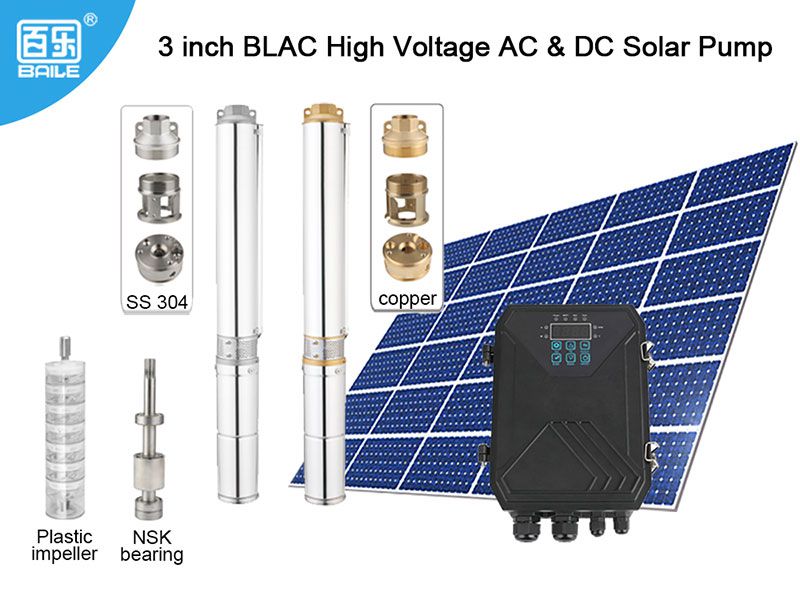

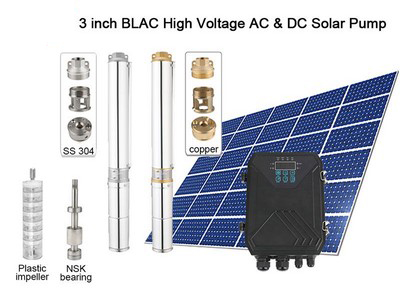

3" Submersible Solar Pump, AC110V/DC150V, Plastic Impeller, BLAC
- Max. flow range: 3 .8m³/h ~ 7.5m³/h
- Max. head range: 46m~180m
- Pump voltage: AC110V, DC150V
- Pump outer diameter: 3"
- Pump outlet diameter: 1.25"

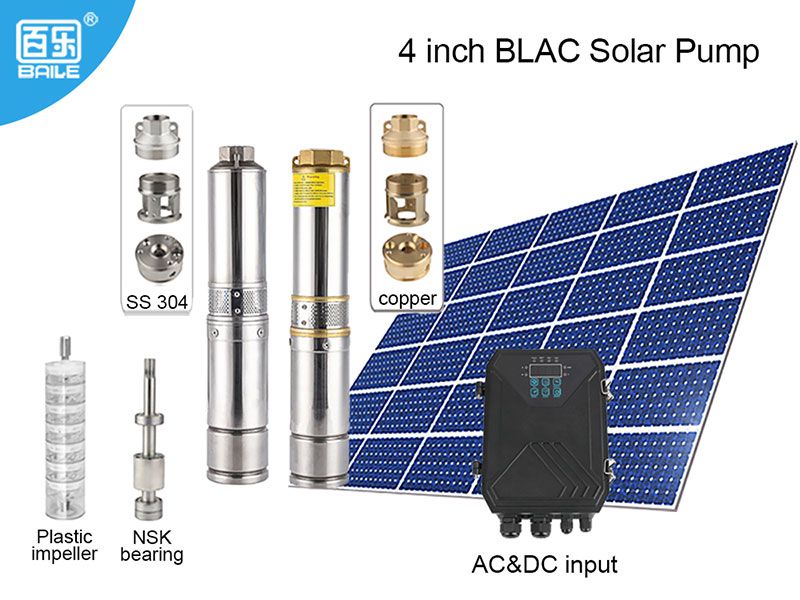

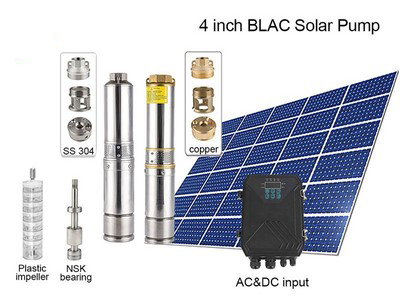

4" Submersible Solar Pump, AC110V/DC150V, Plastic Impeller, BLAC
- Max. flow range: 4.5m³/h ~ 20m³/h
- Max. head range: 36m~135m
- Pump voltage: AC110V, DC150V
- Pump outer diameter: 4"
- Pump outlet diameter: 2"

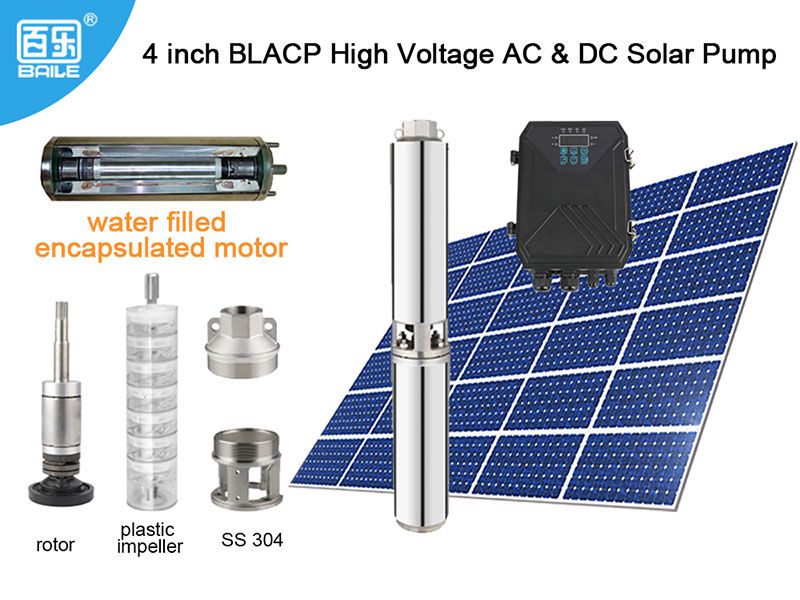

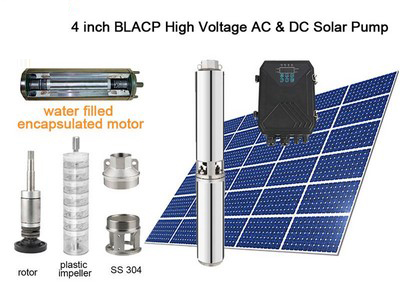

4" Submersible Solar Pump, AC110V/DC150V, Water Filled Encapsulated Motor, Plastic Impeller, BLACP
- Max. flow range: 4.5m³/h ~ 20m³/h
- Max. head range: 36m~135m
- Pump voltage: AC110V, DC150V
- Pump outer diameter: 4"
- Pump outlet diameter: 2"

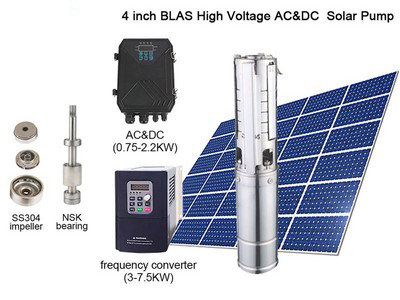

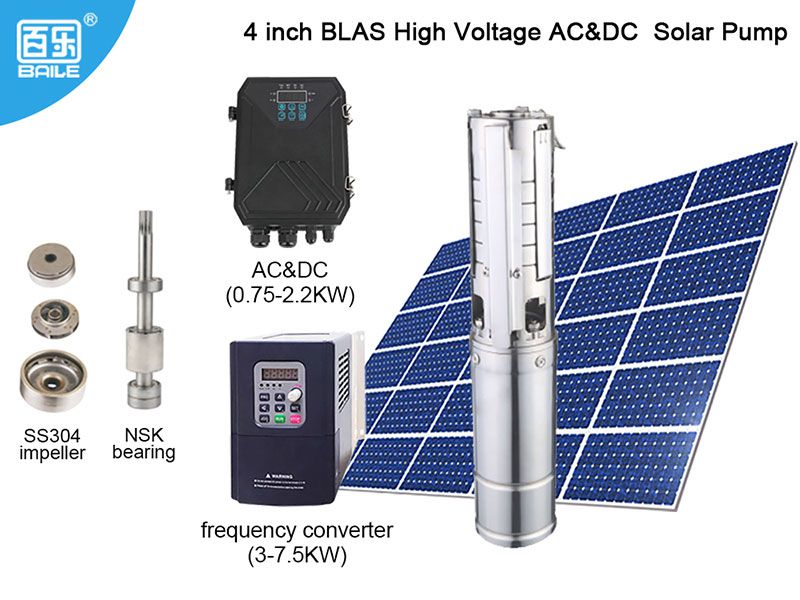

4" Submersible Solar Pump, SS304 Impeller, AC110V/DC150V, AC220V/DC300V, AC380V/DC540V, BLAS
- Max. flow range: 3.8m³/h ~ 18m³/h
- Max. head range: 15m~ 380m
- Pump voltage: AC110V/DC150V；AC220V/DC300V；AC380V/DC540V
- Pump outer diameter: 4"
- Pump outlet diameter: 1.25/ 1.5/ 2"

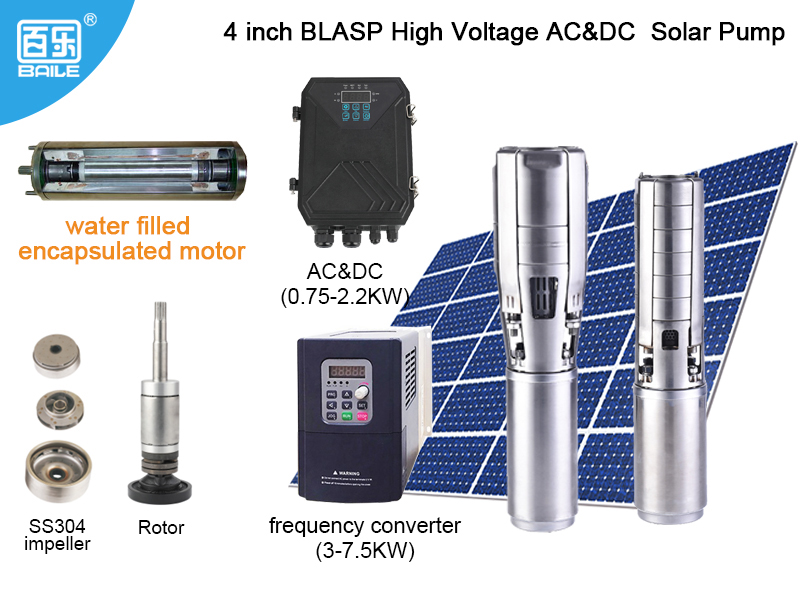

4" Submersible Solar Pump, Encapsulated Submersible Motor, SS304 Impeller, AC110V/DC150V, AC220V/DC300V, AC380V/DC540V, BLASP
- Max. flow range: 3.8m³/h ~ 18m³/h
- Max. head range: 15m~ 380m
- Pump voltage: AC110V/DC150V；AC220V/DC300V；AC380V/DC540V
- Pump outer diameter: 4"
- Pump outlet diameter: 1.25", 1.5", 2"

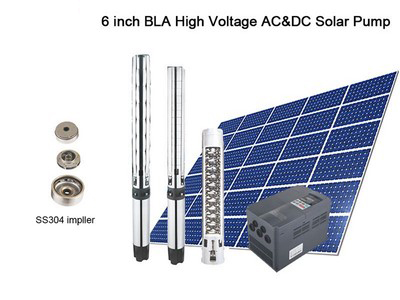

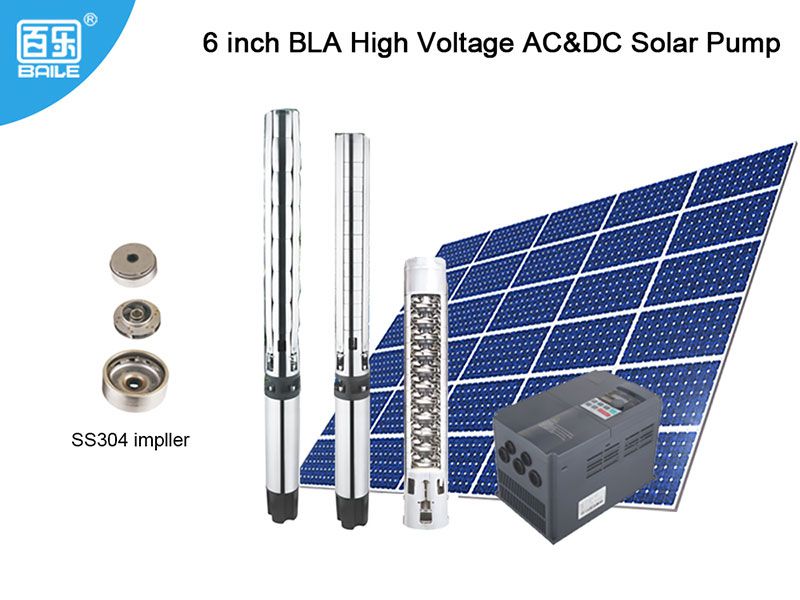

6" Submersible Solar Pump, AC110 V /DC150 V, AC220 V /DC300 V, AC380 V /DC540 V, BLA
- Max. flow range: 30 m³/h ~ 120 m³/h
- Max. head range: 18 m~ 310 m
- Pump voltage: AC110 V /DC150 V；AC220 V /DC300 V；AC380 V /DC540 V
- Pump outer diameter: 6"
- Pump outlet diameter: 3", 5"

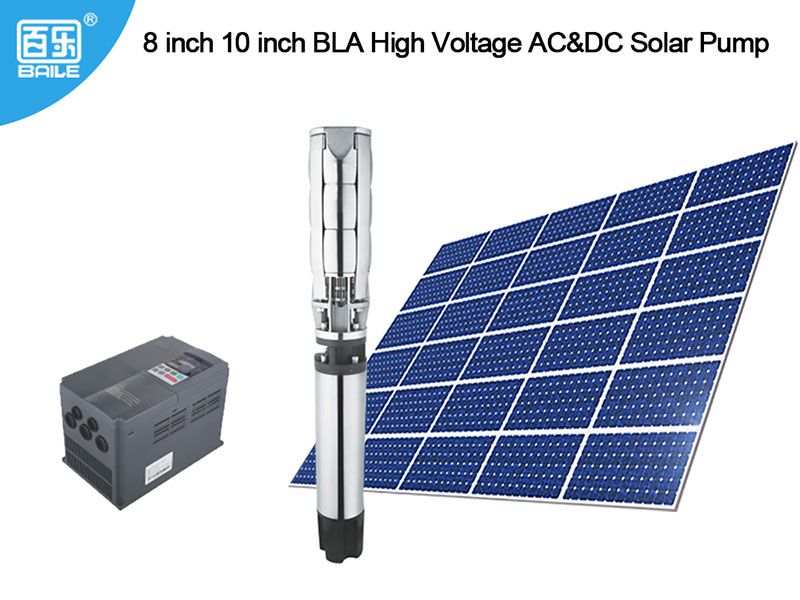

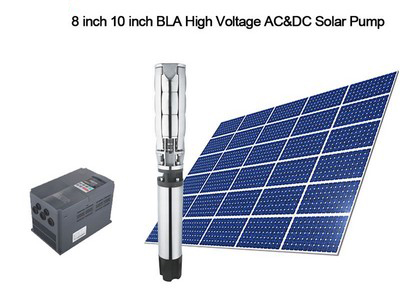

8"/ 10" Submersible Solar Pump, AC 380V/DC 540V, BLA
- Max. flow range: 80/120 (m³/h) ~ 125/200 (m³/h)
- Max. head range: 20/30m~ 84/160m
- Pump voltage: AC 380V/DC 540V
- Pump outer diameter: 8", 10"
- Pump outlet diameter: 3", 5", 6"
Inquiry
Baile Pump is a leading manufacturer of solar water pump systems. We offer complete solar powered water pumping solutions and related products, including solar water pumps, solar charge controllers, Solar Aerator, Solar Panel and more. Our clean and cost-friendly solar water pumping systems are served to customers around the world in residential, commercial, industrial, agricultural and municipal applications.
In addition to stock solar water pumping products, we can also provide customized solar water pumps to fit customer’s specific requirements. We offer high-quality technical support and after-sales service to solve your problems when using our water pumps.
Each solar water pump is delivered with optimum quality by virtue of our strong manufacturing capabilities, high-quality pump parts and strict quality control system. We never stop improving the performance of solar water pumps as well as reducing cost to help our customers improve competitiveness.
In addition to stock solar water pumping products, we can also provide customized solar water pumps to fit customer’s specific requirements. We offer high-quality technical support and after-sales service to solve your problems when using our water pumps.
Each solar water pump is delivered with optimum quality by virtue of our strong manufacturing capabilities, high-quality pump parts and strict quality control system. We never stop improving the performance of solar water pumps as well as reducing cost to help our customers improve competitiveness.
