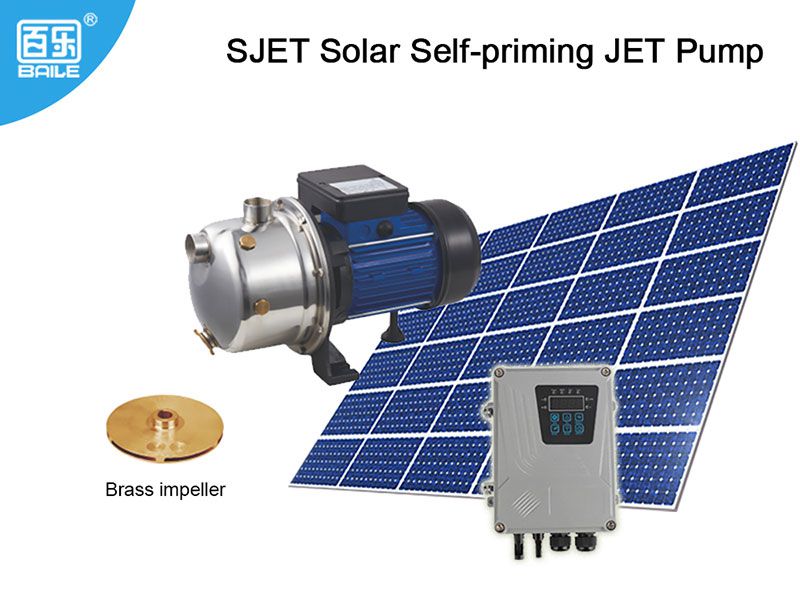

Shallow Well Jet Pump, Solar Powered Pump, SJET

Shallow Well Jet Pump, Solar Powered Pump, SJET
  • Max. flow range: 2.5 m³/h ~ 3 m³/h
  • Max. head range: 38m~55m
  • Pump voltage: DC48V, DC72V
  • Inlet/outlet：1"/1"
Inquiry

Features

  • Solar powered shallow well jet pumps can be sued for home water supply, garden irrigation, water tank storage, water pipe pressure boost, etc.
  • The shallow well jet pump can work 24/7.
  • The solar jet pump features compact design, long lifespan, high effectiveness and great reliability.
  • Voltage: DC 48V, DC 72V.
  • Power: 370W-750W.
  • Max. flow: 3000L/H.
  • Max. head: 55m.

Product Configuration

  • Pump body: stainless steel.
  • Impeller: PPO plastic.
  • Motor casing: die-casting aluminum.
  • Bearing: NSK stainless steel bearing.
  • Motor: permanent magnet synchronous brushless motor.
  • Controller: MPPT function, reverse polarity alarm protection, wide voltage input range.

Technical Data

  • Model: SJET2.5/38-D48/370
  • Max. Flow (m³/h): 2.5
  • Max. Head (m): 38
  • Pump
    Voltage (V): 48
    Power (W): 370
  • Solar Panel
    Open Circuit Voltage (V): 30-96
    Recommended Power (W): 500-600
  • Inlet/outlet (inch): 1/1

  • Model: SJET2.7/48-D48/550
  • Max. Flow (m³/h): 2.7
  • Max. Head (m): 48
  • Pump
    Voltage (V): 48 Power (W): 550
  • Solar Panel
    Open Circuit Voltage (V): 30-96
    Recommended Power (W): 720-900
  • Inlet/outlet (inch): 1/1

  • Model: SJET2.7/48-D72/550
  • Max. Flow (m³/h): 2.7
  • Max. Head (m): 48
  • Pump
    Voltage (V): 72 Power (W): 550
  • Solar Panel
    Open Circuit Voltage (V): 50-150
    Recommended Power (W): 7200-900
  • Inlet/outlet (inch): 1/1

  • Model: SJET3.0/55-D48/750
  • Max. Flow (m³/h): 3
  • Max. Head (m): 55
  • Pump
    Voltage (V): 48
    Power (W): 750
  • Solar Panel
    Open Circuit Voltage (V): 30-96
    Recommended Power (W): 1000-1250
  • Inlet/outlet (inch): 1/1

  • Model: SJET3.0/55-D72/750
  • Max. Flow (m³/h): 3
  • Max. Head (m): 55
  • Pump
    Voltage (V): 72
    Power (W): 750
  • Solar Panel
    Open Circuit Voltage (V): 50-150
    Recommended Power (W): 1000-1250
  • Inlet/outlet (inch): 1/1

Applications

Domestic water needs Domestic water needs
Air conditioner water cooling system Air conditioner water cooling system
Agricultural irrigation Agricultural irrigation
Drinking water supply Drinking water supply
Inquiry
Baile Pump is a leading manufacturer of solar water pump systems. We offer complete solar powered water pumping solutions and related products, including solar water pumps, solar charge controllers, Solar Aerator, Solar Panel and more. Our clean and cost-friendly solar water pumping systems are served to customers around the world in residential, commercial, industrial, agricultural and municipal applications.
In addition to stock solar water pumping products, we can also provide customized solar water pumps to fit customer’s specific requirements. We offer high-quality technical support and after-sales service to solve your problems when using our water pumps.
Each solar water pump is delivered with optimum quality by virtue of our strong manufacturing capabilities, high-quality pump parts and strict quality control system. We never stop improving the performance of solar water pumps as well as reducing cost to help our customers improve competitiveness.
