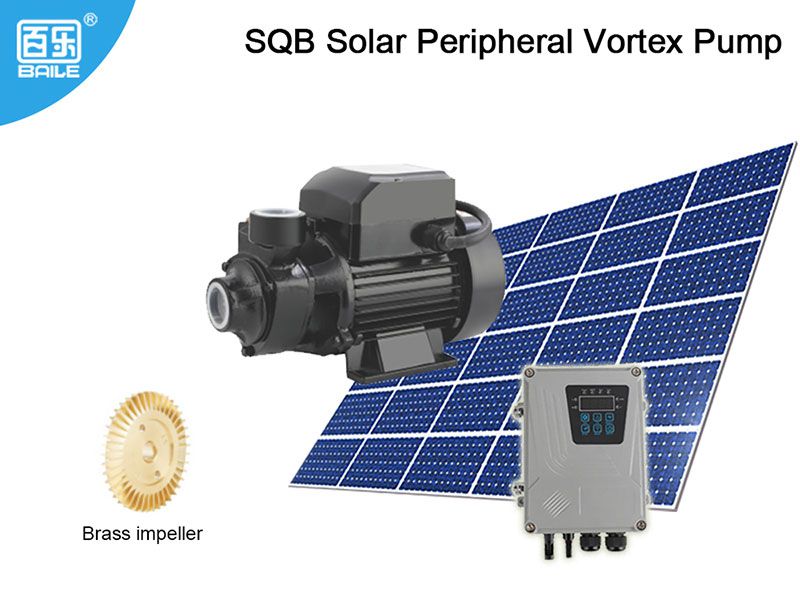

Solar Booster Pump, SQB
- Max. flow range: 2 m³/h ~ 3 m³/h
- Max. head range: 30m~60m
- Pump voltage: DC24V, DC48V, DC72V
- Inlet/outlet：1"/1"
Features
- Solar pump booster SQB series is used for pumping water from wells and ponds, increasing water pipe pressure, garden irrigation, automatic water supply system, etc.
- The solar pump booster features simple construction, economical design, high durability and reliability.
- Voltage: DC 24V, DC 48V, DC 72V.
- Power: 210W~750W.
- Max. flow: 3000L/H.
- Max. head: 60m.
Product Configuration
- Pump body and outlet: cast iron.
- Impeller: brass.
- Motor casing: die-casting aluminum.
- Bearing: NSK stainless steel bearing.
- Motor: permanent magnet synchronous brushless motor.
- Controller: MPPT function, reverse polarity alarm protection, wide voltage input range.
Technical Data
- Model:
SQB2.0/30-D24/210 - Max. Flow (m³/h): 2
- Max. Head (m): 30
- Pump
Voltage (V): 24
Power (W): 210 - Solar Panel
Open Circuit Voltage (V): 20-50
Recommended Power (W): 280-380 - Inlet/outlet (inch): 1/1
- Model:
SQB2.2/40-D24/280 - Max. Flow (m³/h): 2
- Max. Head (m): 40
- Pump
Voltage (V): 24
Power (W): 280 - Solar Panel
Open Circuit Voltage (V): 20-50
Recommended Power (W): 280-380 - Inlet/outlet (inch): 1/1
- Model:
SQB3.0/50-D48/550 - Max. Flow (m³/h): 3
- Max. Head (m): 50
- Pump
Voltage (V): 48
Power (W): 550 - Solar Panel
Open Circuit Voltage (V): 30-96
Recommended Power (W): 720-900 - Inlet/outlet (inch): 1/1
- Model:
SQB3.0/50-D72/550 - Max. Flow (m³/h): 3
- Max. Head (m): 50
- Pump
Voltage (V): 72
Power (W): 550 - Solar Panel
Open Circuit Voltage (V): 50-150
Recommended Power (W): 720-900 - Inlet/outlet (inch): 1/1
- Model:
SQB3.0/60-D72/750 - Max. Flow (m³/h): 3
- Max. Head (m): 60
- Pump
Voltage (V): 72
Power (W): 750 - Solar Panel
Open Circuit Voltage (V): 50-150
Recommended Power (W): 1000-1250 - Inlet/outlet (inch): 1/1
Applications
Domestic water needs
Air conditioner water cooling system
Agricultural irrigation
Drinking water supply
