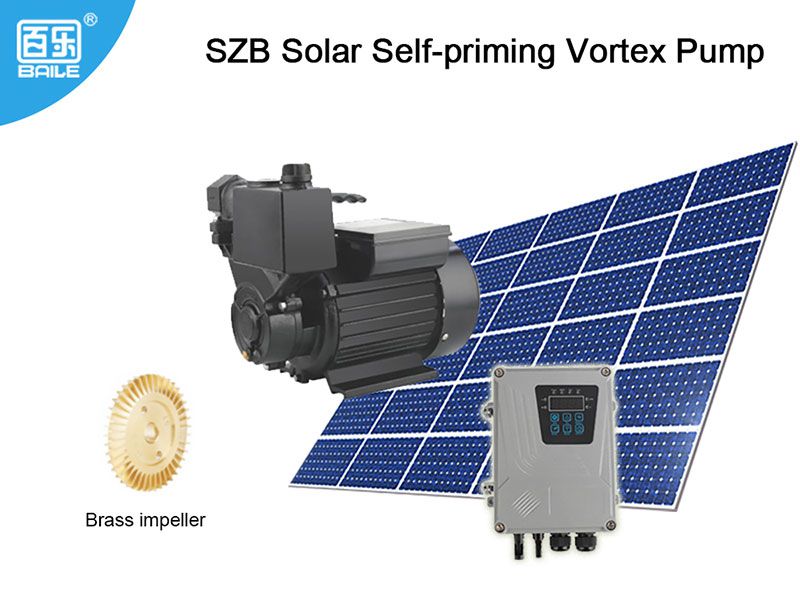

Self-priming Pump, Solar Powered Pump, SZB
- Max. flow range: 2.1 m³/h ~ 4 m³/h
- Max. head range: 25m~45m
- Pump voltage: DC24V, DC48V, DC72V
- Inlet/outlet：1"/1"
Features
- Solar powered self-priming pumps can be sued for home water needs, farmland and garden irrigation, air conditioner water cooling system, water pipe pressure boost system, etc.
- The solar self-priming pump features simple design, long lifespan, high effectiveness and great reliability.
- Voltage: DC 24V, DC 48V, DC 72V.
- Power: 180W-750W.
- Max. flow: 4000L/H.
- Max. head: 45m.
Product Configuration
- Pump body and outlet: cast iron.
- Impeller: brass.
- Motor casing: die-casting aluminum.
- Bearing: NSK stainless steel bearing.
- Motor: permanent magnet synchronous brushless motor.
- Controller: MPPT function, reverse polarity alarm protection, wide voltage input range.
Technical Data
- Model:
SZB2.1/25-D24/180 - Max. Flow (m³/h): 2.1
- Max. Head (m): 25
- Pump
Voltage (V): 24
Power (W): 180 - Solar Panel
Open Circuit Voltage (V): 20-50
Recommended Power (W): 250-300 - Inlet/outlet (inch): 1/1
- Model:
SZB2.5/35-D24/300 - Max. Flow (m³/h): 2.5
- Max. Head (m): 35
- Pump
Voltage (V): 24
Power (W): 300 - Solar Panel
Open Circuit Voltage (V): 20-50
Recommended Power (W): 500-600 - Inlet/outlet (inch): 1/1
- Model:
SZB3.2/40-D48/550 - Max. Flow (m³/h): 3.2
- Max. Head (m): 40
- Pump
Voltage (V): 48
Power (W): 550 - Solar Panel
Open Circuit Voltage (V): 30-96
Recommended Power (W): 750-1000 - Inlet/outlet (inch): 1/1
- Model:
SZB4.0/45-D48/750 - Max. Flow (m³/h): 4
- Max. Head (m): 45
- Pump
Voltage (V): 72
Power (W): 750 - Solar Panel
Open Circuit Voltage (V): 30-96
Recommended Power (W): 1000-1200 - Inlet/outlet (inch): 1/1
Applications
Domestic water needs
Agricultural irrigation
